A2 Gutter Bracket

The A2 Bracket is a universal bracket designed to suit angled fixtures, in both steel and timber applications.

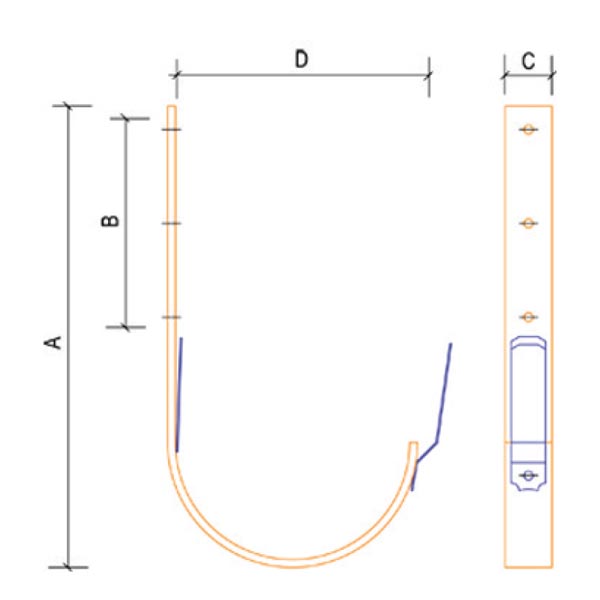

Fixing To Steel – Using a 10×16 wafer head screw or a gutter nut and bolt. Fixing To Timber – Using a 10×35 wafer head type 17 screw. The diagram below shows the minimum fixing area (B) required for installation of the A1 Bracket.

HALF ROUND GUTTER A2 BRACKET:

Standard Sizes available in COLORBOND, COLORBOND Metallic, Stainless Steel, Zinc Mantle And Copper.(COLORBOND range available as powder coated Galvanised brackets)

 Diameter  A (mm)  B (mm)  C (mm)   D (mm)  Gauge (mm)
  100mm  270   135  24  105  4
  125mm  280  145  29  127  4
  150mm  375  145  29  153  4
  200mm  430  145  29  192  4
