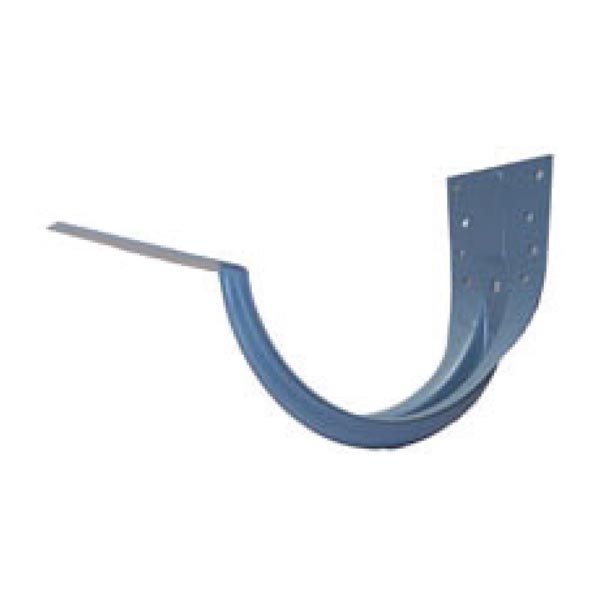

A1 Gutter Bracket

The A1 Bracket is a fascia rafter bracket designed to suit half round gutters up to and including 200mm half round.  Fixing To Steel – Using a 10×16 wafer head screw or a gutter nut and bolt. Fixing To Timber – Using a 10×35 wafer head type 17  screw.

The diagram below shows the minimum fixing area (B) required for installation of the A1 Bracket. Any section above the specified fixing area can be folded back over the purlin or timber.

Each bracket is required to be fixed by a minimum of 4 fixing points marked in the diagram below. Be sure that the 4 lower points are fixed.

HALF ROUND GUTTER A1 BRACKET:

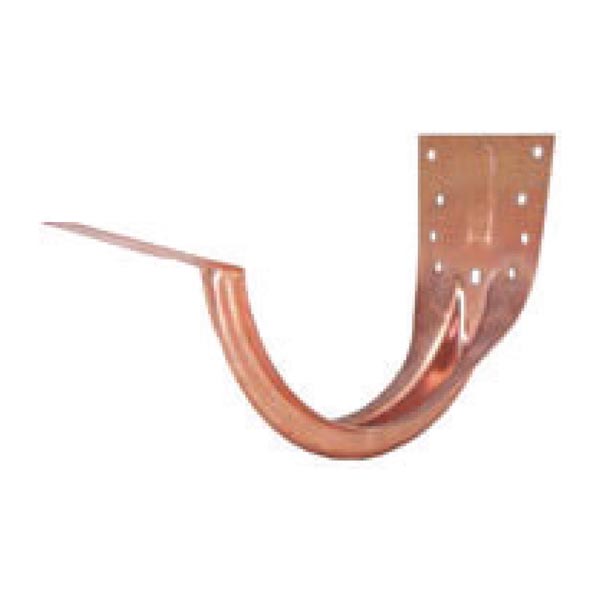

Standard Sizes available in COLORBOND, COLORBOND Ultra, COLORBOND Metallic and Galvanised. (COLORBOND range available as powder coated Galvanised or Aluminium brackets) Stainless Steel only available in 150mm. Also available in Copper in sizes up to 200mm.

 Diameter   A (mm)   B (mm)  C (mm)   WEIGHT (g)
 100mm  105  60  80  106
 125mm  127  75  80  125
 150mm  153  65  80  145
 200mm  192  100  100  267
